Modern construction projects face compounding pressures from escalating labor costs, compressed project schedules, and increasingly complex architectural geometries. Contractors constantly seek methods to optimize site operations without compromising structural integrity or worker safety. Traditional scaffolding methods, such as heavy welded frames or labor-intensive tube and clamp systems, often fall short when deployed on sites demanding strict safety compliance and rapid turnaround times. These legacy systems require extensive manual labor, lack geometric flexibility, and frequently cause schedule overruns due to slow erection and dismantling phases.
To overcome these limitations, the industry is rapidly shifting toward advanced modular solutions. The Ringlock Scaffolding System has emerged as the definitive standard for balancing structural rigidity with rapid deployment. By utilizing engineered node connections and high-strength steel, this system provides a highly adaptable framework capable of supporting heavy dynamic loads across diverse construction environments. Understanding the technical mechanics and operational advantages of this system helps contractors modernize site logistics and improve overall project efficiency.
Labor Efficiency: Ringlock systems significantly reduce erection and dismantling times compared to traditional methods, directly lowering labor overhead.
Geometric Adaptability: The unique rosette node design allows for up to 8 connections at varying angles, making it ideal for curved structures, industrial facilities, and uneven terrains.
Superior Load Capacity: Engineered for high weight distribution, offering enhanced stability for heavy-duty construction scaffolding applications.
Procurement Caution: Realizing ROI requires vetting the scaffolding manufacturer for high-grade steel, compliance with international certification standards, proper galvanization, and certified welding standards to avoid catastrophic failure or rapid degradation.
Inefficient scaffolding systems introduce significant hidden costs that inflate total project budgets. Slow erection times directly translate to increased labor hours, requiring specialized crews to spend weeks assembling frameworks before core construction or maintenance tasks can even begin. Traditional systems often lack the geometric flexibility required for modern architectural designs or complex industrial facilities. When contractors encounter irregular facades or obstructed ground conditions, legacy systems force them to rely on custom fabrications or time-consuming manual adjustments, further delaying the critical path.
Establishing strict success criteria is necessary when procuring modern Construction scaffolding. A viable system must guarantee regulatory safety compliance, meeting or exceeding OSHA and EN standards. It requires a predictable load-bearing capacity certified through rigorous testing. Component durability, particularly resistance to environmental corrosion, dictates the system's operational lifespan. Furthermore, transport efficiency and cross-project versatility are essential; the scaffolding must pack densely for freight and adapt seamlessly from a straight commercial facade to a circular industrial storage tank without requiring entirely new inventory.
Consider a standard refinery shutdown scenario. Every hour the facility remains offline costs thousands of dollars. If the scaffolding crew uses tube and clamp, they spend excessive time measuring, leveling, and tightening individual fittings. The procurement problem here is not just about buying steel; it is about buying time. Contractors need a system that goes up fast, stays rigid under heavy industrial loads, and comes down quickly once the mechanical work finishes.
Verify load-bearing requirements for the specific site application.
Assess the geometric complexity of the structure being accessed.
Evaluate the available labor pool and their familiarity with modular systems.
Determine the environmental conditions to specify the correct galvanization thickness.
The mechanical superiority of the system lies in its specialized Ringlock components. The architecture relies on vertical standards equipped with welded rosette rings at regular intervals. Horizontal ledgers feature cast wedge heads that slot directly into these rosettes. Diagonal braces provide lateral stability, while base collars and adjustable jacks transfer the structural load securely to the ground. When assembled, these components interlock to form a rigid, highly stable structural lattice capable of withstanding extreme vertical and lateral forces.
The wedge-lock connection mechanism is the defining feature of this architecture. Workers secure the horizontal ledgers to the vertical standards using a simple hammer-strike locking action. A captive wedge pin is driven through the wedge head and the rosette, creating a tight, vibration-resistant joint. This single connection eliminates the need for loose nuts, bolts, or friction clamps. Removing loose hardware drastically reduces assembly time, minimizes the risk of dropped objects, and eliminates manual torque errors common in traditional clamp systems.
Structural stability is maximized through the physics of the rosette connection. The node design allows forces to transfer directly through the vertical standards rather than relying on friction. This direct load transfer minimizes structural sway and maximizes rigidity under heavy dynamic loads. The rosette allows up to eight connections at a single node—four at fixed right angles and four at variable angles—providing immense bracing capabilities and ensuring optimal load distribution across the entire scaffold matrix.
Component | Primary Function | Engineering Advantage |
|---|---|---|

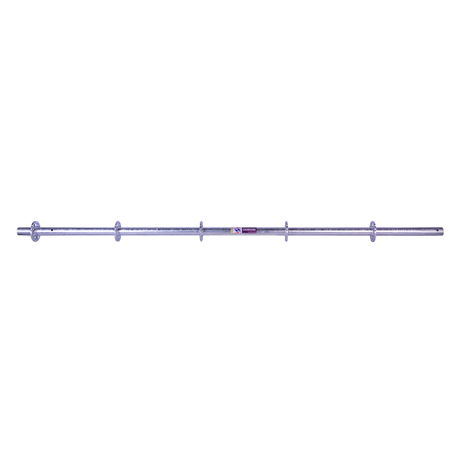

Vertical Standard | Bears vertical loads and provides connection nodes. | High-strength steel tubing with rosettes welded every 500mm for precise leveling. |
Horizontal Ledger | Acts as a guardrail and structural tie between standards. | Captive wedge-pin design eliminates loose parts and ensures a rigid 90-degree connection. |
Diagonal Brace | Provides lateral stability and prevents structural sway. | Swivel wedge heads allow connection at various angles to triangulate the scaffold bay. |
Base Jack | Transfers load to the ground and allows for leveling. | Threaded stem provides fine height adjustment on uneven terrain. |
Evaluating scaffolding systems requires a direct technical comparison of their mechanical capabilities and operational efficiencies. Field crews often debate the merits of different systems, but the data clearly points to modular superiority in complex environments.
Cuplock systems utilize a node connection featuring a fixed lower cup and a sliding upper cup to secure ledger blades. Cuplock is highly efficient for straight facades and rapid linear erection. However, Ringlock provides superior adaptability for industrial sites, curved geometries, and complex structural demands. The 360-degree flexibility of the rosette node allows Ringlock to navigate circular tanks and angular structures much more effectively than the rigid 90-degree constraints typically associated with standard Cuplock configurations. When working on a cylindrical storage tank, the rosette allows ledgers to follow the curve naturally, whereas Cuplock requires overlapping bays or specialized curved ledgers.
Tube and clamp scaffolding offers ultimate flexibility, as pipes can be connected at any point and any angle. However, this flexibility comes at the cost of extreme labor intensity. Every connection requires manual measurement, leveling, and torqueing of friction clamps. A Modular scaffolding system trades the infinite adjustability of tubes for standardized, error-reducing speed. The fixed rosette intervals ensure automatic leveling and right angles, replacing labor-intensive manual alignment with engineered modular efficiency. A bay of modular scaffolding can be erected in a fraction of the time it takes to build the equivalent volume using loose tubes and fittings.
Traditional welded frame scaffolding is bulky and limited in configuration. While simple to stack, frames offer poor weight-to-strength ratios and cannot easily adapt to uneven terrain or complex building shapes. Ringlock utilizes lightweight yet highly durable high-strength steel profiles. This reduces worker fatigue during handling and significantly lowers the transportation footprint. Despite being lighter and more modular, Ringlock retains superior load capacities compared to standard welded frames, making it suitable for heavy-duty shoring and industrial access. You cannot easily weave a welded frame through a dense network of industrial piping, but modular components can be passed through tight spaces and assembled in situ.
Contractors must evaluate the system across several operational dimensions to justify deployment on major projects. The decision impacts logistics, safety, and the overall project schedule.
The standardized wedge-pin connections generate substantial labor savings. Because the system is self-aligning and requires only a hammer for assembly, contractors reduce their reliance on highly specialized, expensive scaffolding labor. Crews can erect and dismantle the framework in a fraction of the time required for tube and clamp systems, accelerating project schedules and allowing subsequent trades to access the workface sooner. In a field test, a five-man crew can erect a 10-meter tower significantly faster using modular components than with traditional fittings.
Modern construction rarely involves perfectly flat ground and straight walls. The multi-directional nodes of the system easily accommodate circular tanks, angular building facades, and complex industrial pipework. By utilizing adjustable base jacks and variable node heights on the vertical standards, crews can securely level the scaffold on highly irregular ground without requiring custom-fabricated components or unstable blocking. This adaptability is particularly useful in civil engineering projects, such as bridge pier access, where the ground slopes dramatically.
Transporting scaffolding represents a major logistical expense. The nesting profile of individual modular components allows for significantly denser packing during transit compared to bulky welded frames. This dense packing reduces freight costs by maximizing truckload capacity. On-site, the components require a smaller laydown yard footprint, which is critical for urban construction environments where space is severely restricted. A single flatbed truck can carry enough modular components to scaffold a large commercial facade, whereas the same volume of welded frames would require multiple trips.
Safety is engineered directly into the system. The gravity-led self-locking wedges prevent accidental dislodgement even if a worker forgets to strike the wedge home immediately. The rigid node connections eliminate the slipping hazards associated with improperly torqued friction clamps. These built-in safety mechanisms align strictly with OSHA regulations and international safety standards, reducing liability and ensuring a secure working platform for all site personnel. Regular inspections are also simplified, as safety officers can visually confirm that wedges are driven down, rather than physically checking the torque on hundreds of individual clamps.
Procuring scaffolding strictly based on the lowest price introduces severe structural and legal risks. Identifying substandard manufacturers is a mandatory step in the procurement process.
Contractors must strictly avoid low-cost, uncertified imports that utilize inferior steel grades or poor welding techniques. A reliable Scaffolding manufacturer must provide verifiable ISO 9001 certification and material traceability back to the steel mill. Procurement teams should demand documentation proving compliance with EN 12810 and EN 12811 standards, alongside evidence of automated welding processes that guarantee consistent structural integrity across all components. Manual welding on rosettes can lead to inconsistent penetration, creating weak points that fail under heavy loads.
Intermingling components from different manufacturers introduces catastrophic structural risks. Even if parts appear visually similar, different manufacturers use varying metallurgical properties, steel thicknesses, and dimensional tolerances. Mixing these parts compromises the engineered load distribution of the node connection, potentially leading to joint failure. Furthermore, mixing components voids manufacturer warranties and transfers all legal liability directly to the contractor in the event of a collapse. Always maintain strict inventory control to ensure brand purity on the job site.
Transitioning a field crew from traditional systems to a modular architecture requires structured training protocols. While the system is designed for ease of use, workers must understand the specific load capacities, bracing requirements, and inspection procedures unique to the rosette and wedge-pin mechanics. Implementing certification programs ensures that crews can erect the system safely and efficiently, minimizing the initial adoption curve and maximizing the speed advantages of the modular design. Training should cover proper hammer techniques to avoid damaging the wedge heads and the correct sequence for installing diagonal braces.
The shift toward advanced modular scaffolding is driven by the undeniable need for speed, safety, and structural adaptability. The system provides a robust engineering solution that eliminates the inefficiencies of traditional methods, offering unparalleled load-bearing capacity and geometric flexibility. For contractors managing complex, high-load, or schedule-sensitive projects, adopting this architecture is a strategic operational upgrade.
To optimize your scaffolding operations, take the following steps:
Audit your current scaffolding labor and transport costs to identify baseline inefficiencies.
Request certified load-test reports and material traceability documents from potential suppliers.
Consult with a qualified manufacturer for a technical pilot project assessment to evaluate on-site performance.
Establish strict inventory controls to prevent the dangerous mixing of components from different brands.
A: It is a multi-directional modular scaffolding system characterized by its central rosette node and wedge-pin connections. This design allows up to eight components to connect at a single point, providing exceptional structural rigidity and geometric flexibility without the need for loose fittings or friction clamps.
A: Load capacity depends on the specific rosette spacing, steel grade, and overall structural configuration. Generally, it is engineered to support heavy-duty industrial loads and concrete shoring. Users must always consult the specific manufacturer's load charts and engineering specifications for precise capacity limits.
A: The optimal choice depends entirely on the application. Ringlock excels in complex, curved, or industrial geometries due to its 360-degree rosette node. Cuplock is highly efficient and often preferred for straight, linear facades where complex angular connections are not required.

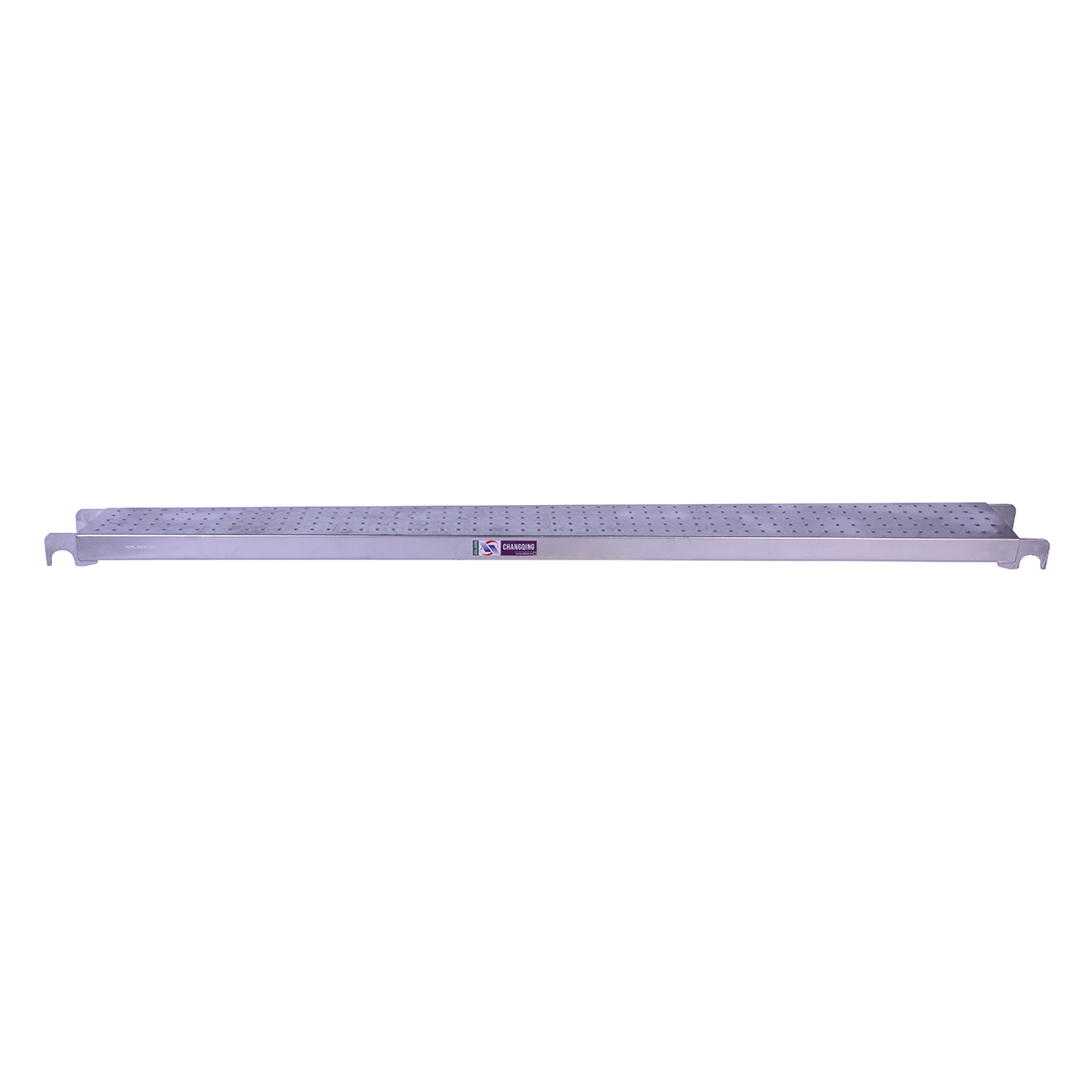

A: The primary parts include vertical standards with rosettes, horizontal ledgers with wedge heads, diagonal braces for lateral stability, base jacks for leveling, and steel planks to create the secure working platform.
A: Yes, it is highly adaptable to irregular ground. The system utilizes adjustable base jacks and variable node heights on the vertical standards, allowing crews to achieve secure, level foundations on uneven terrain without compromising structural stability.
A: Look for verifiable ISO 9001 certifications, strict compliance with EN 12810/12811 standards, and independent third-party material testing. Ensure they maintain high hot-dip galvanization thickness standards, utilize automated welding, and provide transparent warranty policies and material traceability.
