Kwikstage scaffold is a modular steel scaffolding system that uses a wedge‑lock connection. Vertical standards feature V‑shaped pressed “star” rosettes welded at fixed 0.5‑meter intervals. Ledgers, transoms, and diagonal braces are fitted with captive wedges that drop into the star rosette and lock securely with a hammer blow – no loose bolts or couplers.
The Kwikstage Scaffolding System is one of the most widely used modular scaffolding systems worldwide. It combines fast assembly, high load capacity, and exceptional versatility, making it suitable for a broad range of construction projects – from residential housing and commercial buildings to industrial maintenance, bridge works, and temporary event structures.
Key benefits of Kwikstage scaffold include:
Fast installation and dismantling – The wedge mechanism requires only a hammer, reducing on‑site labor time and project downtime.
Fewer loose parts – Wedges remain captive on ledgers and braces, minimizing losses and site clutter.
High load‑bearing capacity – Manufactured from high‑strength steel (Q355B or equivalent), Kwikstage supports heavy loads for formwork, material storage, and personnel access.
Versatile configurations – The same basic components can form façade scaffolds, stair towers, birdcage structures, load‑bearing shoring, and access platforms for complex geometries.
Durable protection – Hot‑dip galvanized finish provides corrosion resistance for outdoor and coastal environments, ensuring long service life and high reusability.
Reduced skill requirements – The intuitive wedge‑and‑star connection allows crews to become productive quickly with minimal training compared to traditional tube‑and‑coupler systems.
As a leading Kwikstage Scaffolding Manufacturer and Modular Steel Scaffold Supplier, CQ Scaffolding has produced and supplied Kwikstage systems for over 20 years, exporting to 32 countries worldwide.
Our Kwikstage Scaffolding System consists of the following primary components, each manufactured with robotic welding, hot‑dip galvanizing, and quality control to meet EN 12810, EN 12811, and AS/NZS 1576 standards.
| Component | Function | Key Feature |
| Kwikstage Galvanized Standard | Vertical load‑bearing member with welded star rosettes at 0.5 m intervals | Available in 0.5 m to 3.0 m lengths, Q355B steel, hot‑dip galvanized |
| Kwikstage Painted Standard | Vertical member for short‑term or indoor use | Same dimensions as galvanized standard, painted finish for lower cost |
| Kwikstage Ledger | Horizontal component connecting standards | Forged wedge head, lengths from 0.6 m to 2.5 m |

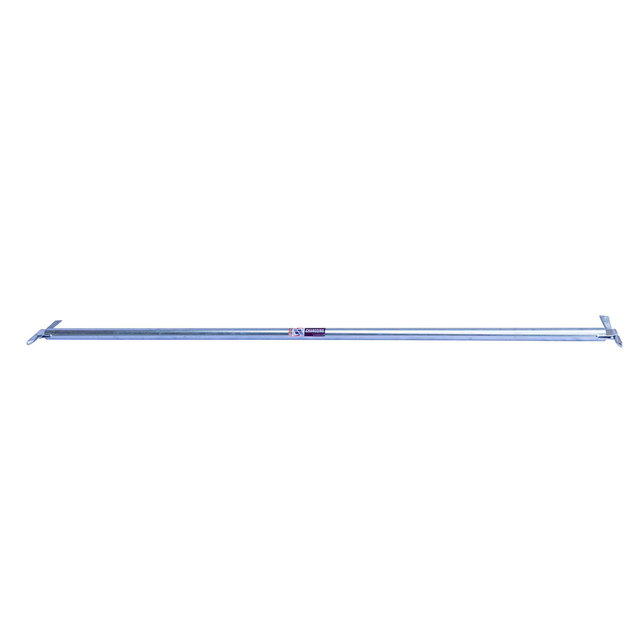

| Kwikstage Diagonal Braces | Provide lateral stability and prevent sway | Tubular brace with wedge ends, lengths match ledger bays |

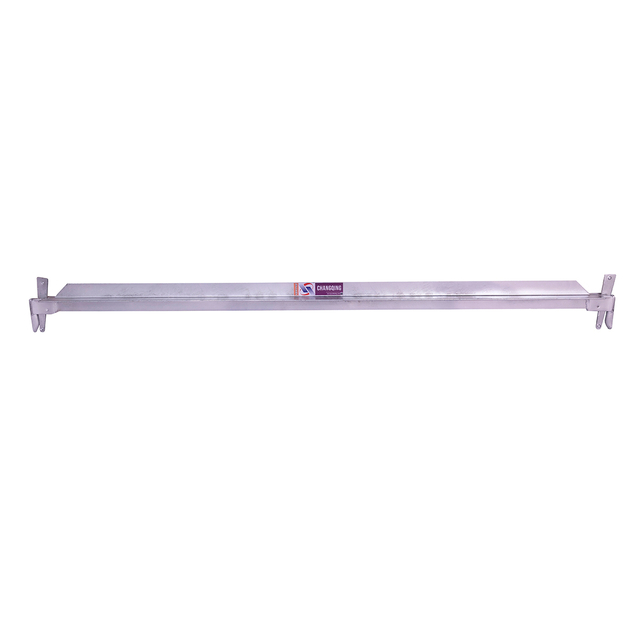

| Kwikstage Galvanized Transoms | Support steel planks and distribute vertical loads | Drop‑in design with forged wedge connections |
| Kwikstage Galvanized Topper | Top guardrail/post assembly for edge protection | Integrates with standard for quick safety railing installation |

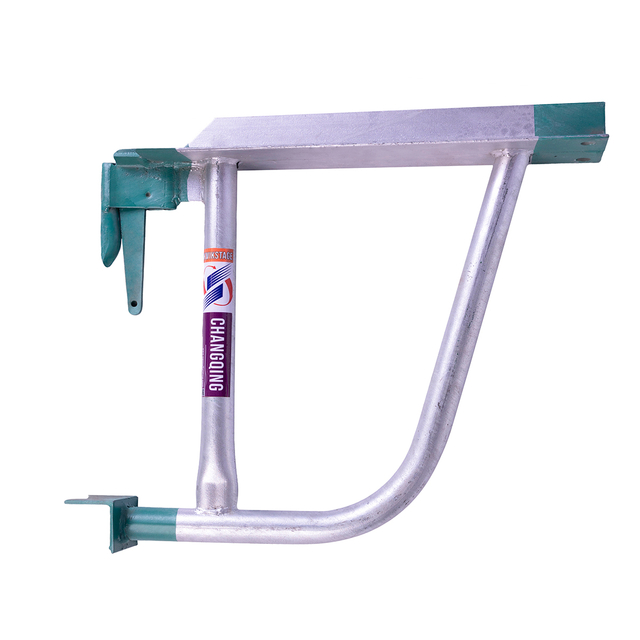

| Hop‑Up Brackets | Extend working platform or create temporary access | One‑board and two‑board configurations, painted or galvanized |

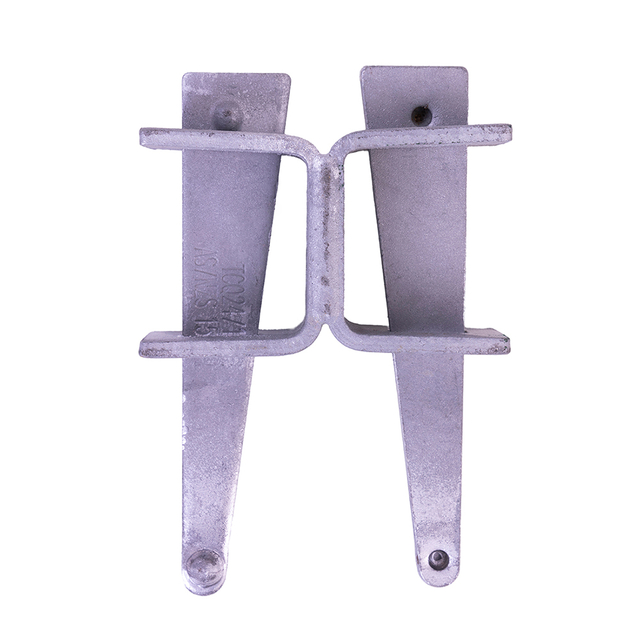

| Toe Board Brackets | Hold toe boards for tool/foot protection at platform edges | End and intermediate brackets available |
| Edge Protection Standards | Provide additional height for guardrails | Quick‑fit into standard rosettes |

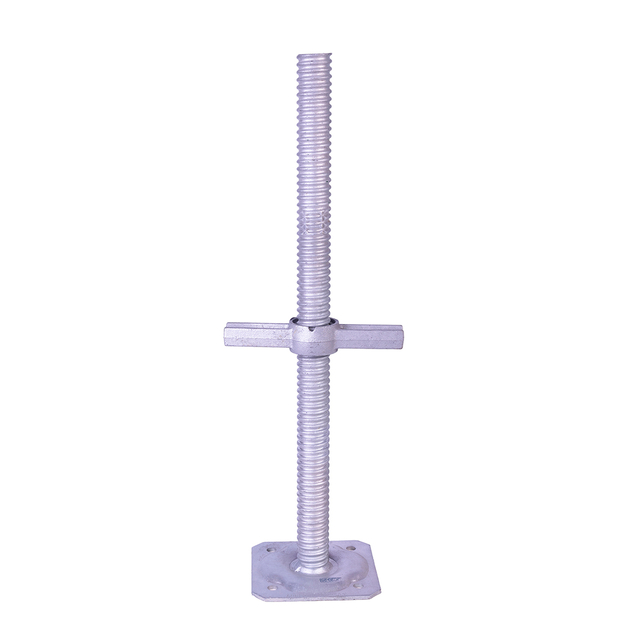

Additional accessories available: base jacks, U‑head jacks, ladder brackets, stair stringers, steel planks with hooks, and tie bars.
The wedge‑lock mechanism allows a single worker to connect a ledger or brace with one hammer strike. Compared to traditional tube‑and‑fitting scaffolding, Kwikstage can reduce erection time by up to 50%, significantly lowering labor costs and accelerating project schedules – especially valuable for tight‑deadline construction projects.
Captive wedges remain permanently attached to ledgers, transoms, and braces. This eliminates the risk of dropping or misplacing small components. The rigid star‑rosette connection resists loosening under vibration, and the flush profile reduces snagging hazards.
Kwikstage standards are manufactured from high‑strength steel tube (typical wall thickness 3.2 mm or greater). The system supports heavy loads – ideal for concrete formwork support, material storage on platforms, and high‑density personnel access. Diagonal bracing provides lateral stability against wind and dynamic forces.
A single set of Kwikstage components can be configured into multiple scaffold types: facade access, independent towers, birdcage scaffolds, stair access towers, shoring systems, loading bays, and temporary roof supports. This versatility reduces the need to purchase different systems for different project phases.
Because the connection points are pre‑engineered (star rosettes at fixed 0.5 m intervals), workers do not need to measure or cut components on site. Assembly follows a simple, repeatable pattern. This allows contractors to deploy less experienced crews productively while maintaining safety.
Hot‑dip galvanized finish (zinc coating 60‑80 µm) protects against rust, UV, and chemical exposure. Components can be reused across hundreds of projects with minimal maintenance. This makes Kwikstage a cost‑effective choice for rental companies and contractors who move scaffolds frequently.
As an experienced Kwikstage Scaffolding Manufacturer, CQ Scaffolding offers custom Kwikstage solutions including non‑standard lengths, special finishes (e.g., painted to brand colors), and component modifications for unique site conditions.
Kwikstage is widely used for bricklaying, plastering, cladding, window installation, painting, and façade renovation. The modular design adapts to floor‑to‑floor height changes, and the guardrail system integrates directly, ensuring fall protection from the first lift.
Refineries, power plants, chemical facilities, and manufacturing sites require temporary access for inspection, maintenance, and repair. Kwikstage’s quick assembly and dismantling reduce downtime, and the system can be configured around pipes, vessels, and equipment.
For bridge soffit formwork, pier access, and viaduct maintenance, Kwikstage provides high load capacity and flexible bay dimensions. Pre‑construction simulation and engineering support are available for complex layouts.
Concerts, sports events, exhibitions, and festivals require rapid deployment of stages, grandstands, walkways, and camera platforms. Kwikstage’s tool‑free wedge connection allows fast erection and dismantling, while galvanized planks provide a non‑slip surface for crowds.
Kwikstage towers with base jacks and U‑head jacks support concrete slab formwork, transfer beams, and heavy structural elements during casting. The system’s predictable load tables allow engineers to design safe, economical shoring layouts.
Since 1999, CQ Scaffolding has specialized in Kwikstage Scaffolding Systems. Our engineering team understands load dynamics, material behavior, and connection geometry, delivering components that perform reliably on site.
EN 12810 / EN 12811 – European scaffolding standards
AS/NZS 1576 – Australian/New Zealand standard
EN 1090‑2 Execution Class EXC3 – structural steel certification with full traceability
ISO 9001 – quality management system
All components undergo in‑house weld inspection, zinc coating thickness testing, and assembly trials before shipment.
20,000 m² manufacturing facility
30,000 tons annual output
15‑day typical lead time for standard orders
Ability to handle bulk orders and urgent timelines
As a leading Modular Steel Scaffold Supplier, we provide OEM services: non‑standard standard lengths, custom rosette spacing, powder coating in branded colors, laser‑etched part numbers, and private label packaging for international distributors.
Load calculation and 3D layout design
Pre‑construction simulation for complex or irregular structures
On‑site training and assembly guidance
Spare parts supply for long‑term maintenance
We serve clients in 32 countries across Europe, Australia, New Zealand, Southeast Asia, the Middle East, and North America. Documentation includes CE declarations, test certificates, and as‑built drawings as required by local regulations.
Whether you need a complete Kwikstage Scaffolding System for a large infrastructure project, a container load of standard components for your rental fleet, or a custom OEM solution, CQ Scaffolding is ready to support you.
Contact our team today with your component list, quantities, and delivery requirements. We will respond within 24 hours with technical data, load tables, and a competitive quote.
