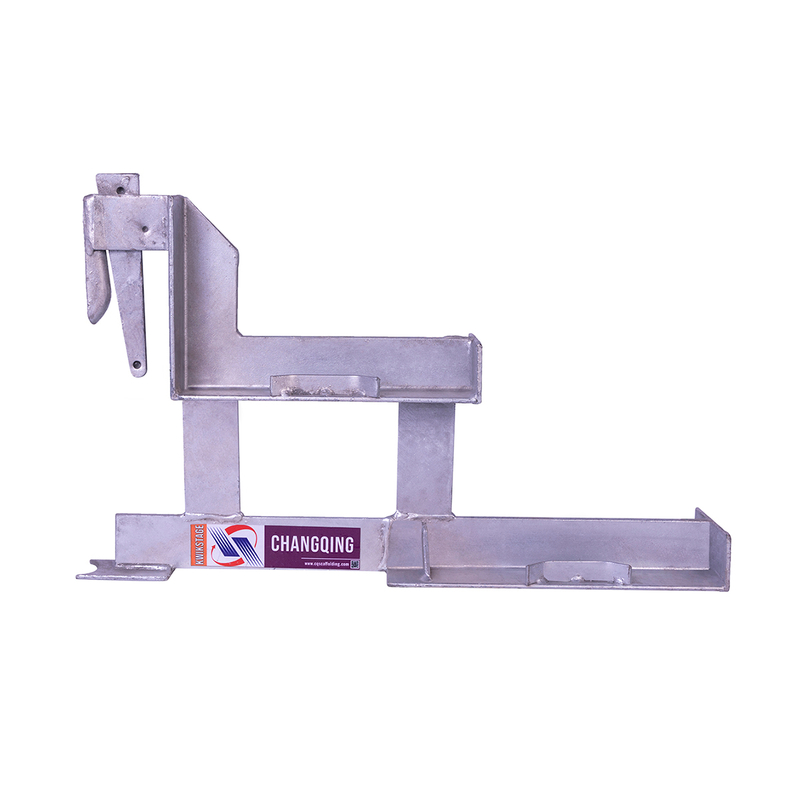

The Kwikstage Double Step Down Brackets are innovative components designed to facilitate safe and efficient height transitions between different levels of scaffolding platforms. Constructed from heavy-duty steel with a dual-pin design, these brackets allow two consecutive ledger connections at different heights, creating a stepped platform configuration. The hot-dip galvanized finish ensures long-lasting performance, while the precision-engineered slots provide 50mm height adjustment increments for versatile applications.
Dual-Level Connectivity: Supports two ledgers at heights differing by 300mm to 600mm, enabling smooth transitions between platforms.
High Load Resistance: Each bracket can carry up to 450kg when properly installed, making it suitable for heavy material handling.
Quick Installation: The self-locking pins engage with Kwikstage ledger ends automatically, reducing setup time by 40% compared to traditional step-down methods.
Angle Adjustability: The bracket arms can rotate 180 degrees, allowing both inward and outward step-down configurations to fit complex building geometries.
These brackets are ideal for projects requiring multi-level scaffolding with height variations, such as:
1. Buildings with setback floors or recessed balconies
2. Industrial chimneys and silos with tiered access requirements
3. Bridge abutments and piers with stepped structural elements
4. Renovation projects on buildings with uneven facades or protruding architectural features.
Q: Can the step-down height be customized beyond 600mm?
A: Standard brackets support up to 600mm, but custom versions can be ordered for larger height differences. Contact our engineering team for specifications.
Q: Do they require additional bracing?
A: Yes, horizontal bracing is recommended every 6m to maintain structural stability, especially in windy conditions.
Q: Can they be used with non-galvanized components?
A: Yes, but for uniform corrosion resistance, we recommend using galvanized brackets with galvanized ledgers and uprights.
Q: What is the weight of a double step down bracket?
A: Approximately 2.5kg, designed to be lightweight yet sturdy for ease of transport and handling.
Name | Size | Galvanised Weight(KGS/PC) |
Double Step Down | 0.3m | 6.50 |
