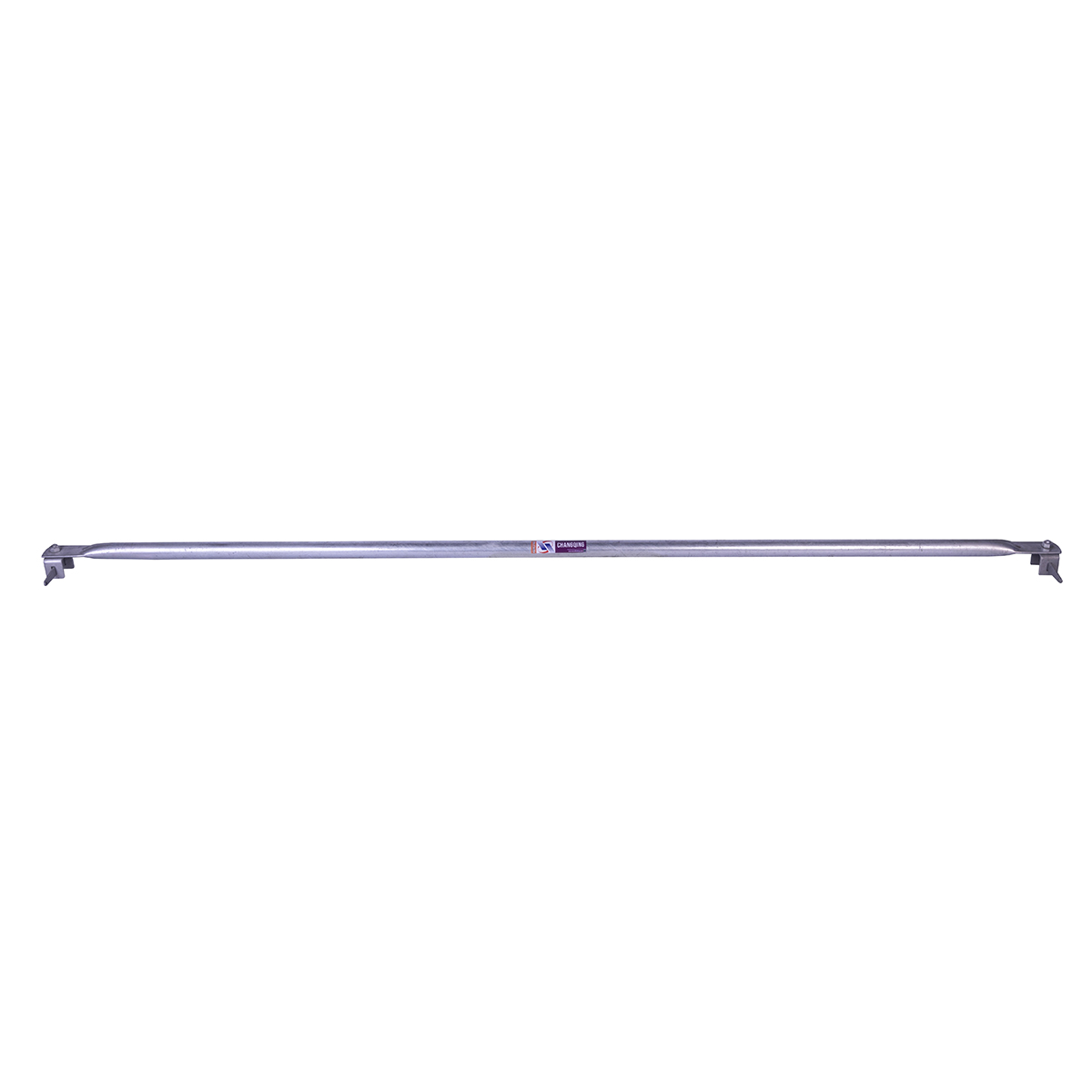

Kwikstage Diagonal Braces are critical components for enhancing the lateral stability of Kwikstage scaffolding systems, resisting wind, seismic, and dynamic loads. Constructed from high-tensile galvanized steel, these braces feature a tubular design with swivel couplers at both ends, allowing for adjustable connections to standards and ledgers at optimal angles (45°–60°). Available in lengths from 1.2m to 4.0m, they are designed to fit standard Kwikstage bay sizes, with a maximum tensile/compressive strength of 15,000N. The galvanized finish provides excellent corrosion resistance, while the swivel couplers ensure a tight, vibration-resistant fit. These braces form triangular load paths that distribute forces evenly across the scaffolding structure, minimizing racking and sway.
Adjustable Swivel Couplers: The couplers rotate 360° and lock at any angle, enabling precise alignment with standards and ledgers to form effective bracing patterns.
High Strength-to-Weight Ratio: The tubular steel design offers maximum strength while remaining lightweight (6–12kg per brace), facilitating easy handling and installation.
Full System Integration: Designed exclusively for Kwikstage components, they connect seamlessly to pre-welded bracket nodes on standards, ensuring compatibility and structural efficiency.
Weather Resistance: The hot-dip galvanized coating protects against rust and environmental damage, making them suitable for use in all climates, from arid deserts to tropical rainforests.
Kwikstage Diagonal Braces are essential in any scaffolding project where lateral stability is critical. In high-rise construction, they resist wind loads exceeding 1.5kPa, ensuring the scaffolding remains secure during storms. They are also vital in infrastructure projects, such as viaducts or overpasses, where scaffolding must withstand vibrations from traffic or machinery. In industrial scaffolding for tall chimneys or boilers, these braces counteract the lateral forces generated by worker movement or equipment operation. Additionally, they are used in temporary event structures to reinforce against accidental impacts or wind gusts, ensuring public safety.
Q: How many diagonal braces are needed per bay?
A: A minimum of two braces per bay (in both directions) is standard for most applications. Consult a structural engineer for projects with unique load requirements.
Q: Can they be used with non-Kwikstage couplers?
A: No, they are designed for Kwikstage’s proprietary bracket system. Using non-compatible couplers may compromise safety.
Q: What happens if a brace is installed at the wrong angle?
A: Angles outside 45°–60° reduce bracing efficiency. Remove and reinstall at the correct angle to ensure proper load distribution.
Q: How do I inspect diagonal braces for damage?
A: Check for bent tubes, cracked welds, or loose couplers. Any visible damage requires immediate replacement—do not use compromised braces.
