Ringlock system scaffolding (also referred to as ringlock scaffolding) is a modular, multi-directional scaffolding system that uses a unique welded rosette as its central connection point. The rosette – typically a stamped steel disc with multiple holes – allows up to eight components (ledgers, diagonal braces, planks, etc.) to connect at a single node using a captive wedge hammered securely into place.
This design eliminates loose bolts or couplers, reduces assembly time, and delivers exceptional structural rigidity. Unlike traditional scaffolding, the Ringlock system provides consistent, predictable load paths and can be configured into a wide variety of shapes – from standard façade scaffolds to complex curved structures, stair towers, shoring systems, and temporary event stands.
At CQ Scaffolding, we have manufactured ringlock scaffolding systems for over 20 years, supplying projects across 32 countries. Our Ringlock components are engineered and tested to comply with international standards EN 12810, EN 12811, AS/NZS 1576, and are produced under EN 1090‑2 EXC3 structural certification. Whether you need a standard configuration or a custom ringlock scaffolding solution, our engineering team supports you from design to on‑site assembly.
The ringlock scaffolding system stands out for several engineering and operational features:
Rosette Connection – A central steel rosette welded to the standard at fixed intervals (typically every 0.5 m or 1 m). The rosette contains multiple punched holes (usually 8) allowing connection at 45° increments, enabling multi‑directional assembly without additional fittings.
Captive Wedge Locking – Ledgers, braces, and other components are fitted with a forged wedge head that drops into the rosette. A single hammer blow secures the wedge, creating a rigid, self‑locking connection. The wedge remains captive – no loose parts to lose or misplace.
Hot‑Dip Galvanized Finish – All Ringlock components are hot‑dip galvanized (zinc coating) as standard, providing excellent corrosion resistance for outdoor and coastal environments, plus high reusability across multiple projects.
Modular Standardization – Few component types (standards, ledgers, diagonals, planks) can be combined in countless configurations, reducing inventory complexity while allowing rapid adaptation to different project geometries.
Predictable Load Capacity – Because the rosette positions are fixed, load calculations are consistent and repeatable. Engineers can rely on published load tables for stability analysis and wind resistance planning.
High Lateral Stability – Diagonal braces lock into the rosette at angles, creating triangulated bracing patterns that resist wind, seismic forces, and dynamic loads from equipment or personnel movement.
With no loose couplers or bolts, Ringlock erects much faster than traditional tube‑and‑fitting scaffolding. A trained crew can install several square meters per hour. The wedge hammer is the only tool required.
Because the rosette allows connections at multiple angles, the same Ringlock components can build standard façade scaffolds, birdcage and tower structures, curved or circular scaffolds (e.g., for tanks or domes), staircase towers, shoring and falsework for concrete pours, loading bays and temporary roofs, and grandstands or event staging.
Fewer loose parts means fewer tripping hazards and reduced falling-object risks. The rigid rosette connection eliminates the loosening that can occur with coupler‑based systems under vibration. The flush connection profile (no protruding bolts) reduces snagging risks for workers and materials.
Although the upfront cost of a Ringlock system may be higher than some traditional options, its exceptional durability (hot‑dip galvanized) and reusability across hundreds of projects deliver significantly lower long‑term costs. Components are designed to resist damage during transport and assembly, reducing replacement frequency.
The intuitive wedge‑and‑rosette system allows workers to become productive with less training compared to complex tube‑and‑coupler scaffolding, where skilled scaffolders must assess each connection individually.
Ringlock scaffolding is engineered for heavy‑duty applications. Standards are manufactured from high‑strength steel tube (e.g., Q355B or equivalent) with thicker walls, enabling support for heavy concrete formwork, large‑span bridges, and industrial maintenance.
Captive wedges remain attached to ledgers and braces. Forkheads and spigots are integrated. This drastically reduces the loss of small parts on large, busy construction sites – a common cost overrun with traditional systems.
For projects with unusual dimensions, challenging site conditions, or specific safety requirements, a custom ringlock scaffolding solution can be engineered. CQ Scaffolding offers OEM customization including non‑standard lengths, special finishes (e.g., painted, stainless steel), branded packaging, and component labeling for international distributors.
Our ringlock scaffolding system consists of the following core components. Each is manufactured with robotic welding, hot‑dip galvanizing, and quality verification to meet EN 12810/12811 dimensional and strength requirements.
| Component | Function | Key Feature |
| Ringlock Standards | Vertical load‑bearing members with welded rosettes at fixed intervals | Available in multiple lengths (0.5 m to 3.0 m), Q355B steel, 2.6–4.0 mm wall thickness |
| Ringlock Ledgers | Horizontal components connecting standards | Forged wedge head, lengths from 0.6 m to 3.0 m, forms the scaffold bay framework |
| Ringlock Diagonal Braces | Provide lateral stability and prevent sway | Tubular construction with wedge ends, lengths match ledger bays |

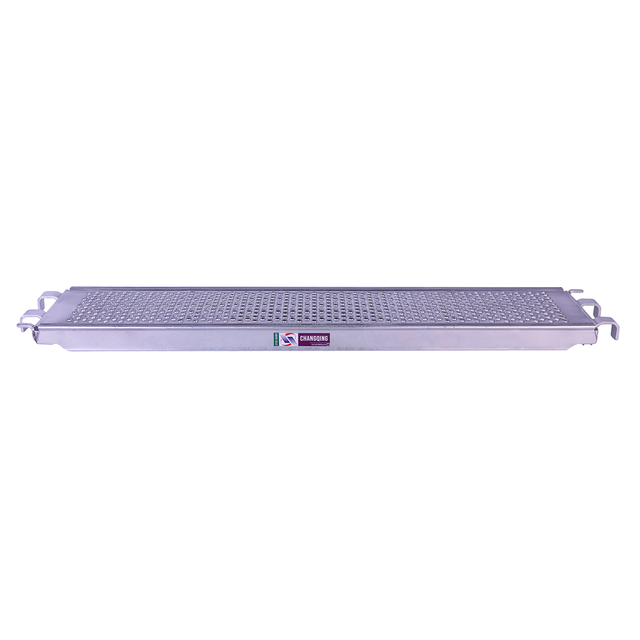

| Steel Plank with Hooks | Non‑slip working platform | Hot‑dip galvanized, 240 mm or 320 mm width, lift‑up hooks engage ledgers |
| Plank with Wind Latches | Steel plank with anti‑lift locking device | Prevents planks from dislodging in windy or high‑vibration environments |
| Ringlock Toe Board | Edge protection at platform level | Drop‑in design, prevents tools and materials from falling |
| Ringlock Base Collar | Connects standard to base jack or concrete foundation | Transfers vertical load to the base |

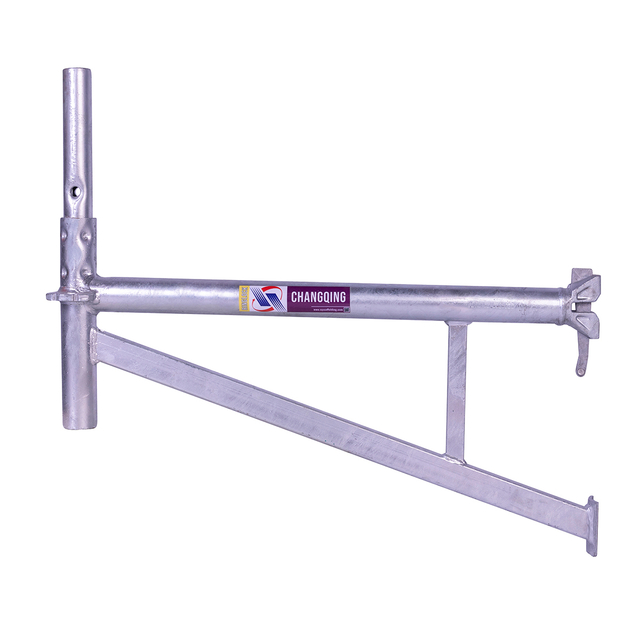

| Ringlock Side Bracket | Creates extended working platforms beyond the main scaffold width | Supports additional steel planks for extra working area |
Additional components available upon request: adjustable base jacks, U‑head jacks for shoring, ladder brackets, guardrail posts, stair stringers, and cantilever platforms.
For high‑rise buildings, shopping malls, warehouses, and factories, Ringlock provides safe, high‑capacity platforms for bricklaying, cladding, glazing, and painting. Modular design allows the scaffold to adapt to floor‑to‑floor height changes and irregular facades.
Large‑span bridges require scaffolding that can support heavy formwork and concrete during casting. Ringlock’s high load capacity and ability to be configured for curved alignments make it ideal for bridge soffit support, inspection gantries, and approach structures. Our pre‑construction simulation service ensures precise fit.
In tunnel projects, Ringlock can be used for arch support, lining formwork backing, and access platforms for mechanical and electrical installations. The rosette connection accommodates the circular cross‑section of tunnels without requiring custom‑curved components for every node.
Concerts, exhibitions, and festivals demand rapid deployment and dismantling. Ringlock is widely used for stage frameworks, grandstands (with tiered seating), walkways, camera platforms, and lighting towers. The hot‑dip galvanized finish withstands outdoor exposure, and the system can be reused many times.
Ringlock shoring towers support concrete slabs, beams, and transfer structures. Adjustable base jacks and U‑heads allow precise height adjustment. The system is compatible with plywood decking and can be designed for heavy‑duty loads in infrastructure projects.
Refineries, power plants, and shipyards need access solutions for maintenance, inspection, and repair. Ringlock’s modular nature allows it to be configured around pipes, vessels, and machinery, providing safe access at height.
CQ Scaffolding has specialized in ringlock scaffolding systems since 1999. Our engineering team understands load dynamics, material fatigue, and connector geometry, ensuring every component performs reliably on site.
EN 12810 (factory‑made scaffolding components)
EN 12811 (performance requirements and general design)
AS/NZS 1576 (Australian/New Zealand scaffolding standard)
EN 1090‑2 Execution Class EXC3 (structural steel fabrication with full traceability and NDT)
ISO 9001 quality management
All products undergo in‑house testing: weld inspection, zinc coating thickness measurement, and assembly trials before shipping.
20,000 m² manufacturing facility
30,000 tons annual output
15‑day typical lead time for standard orders
Ability to scale from prototype to full container shipments
We offer custom ringlock scaffolding services: non‑standard ledger or standard lengths, special rosette spacing (e.g., 1.0 m instead of 0.5 m), powder coating in branded colors or additional anti‑corrosion layers, laser‑engraved part numbers and safety warnings, and custom packaging and labeling for distributors.
Load calculation and 3D layout design (using industry software)
Pre‑construction simulation to verify fit and structural integrity
On‑site training and assembly guidance
Spare parts supply for long‑term maintenance
We export to Europe (Germany, France, UK, Poland), Australia, New Zealand, Southeast Asia (Singapore, Malaysia, Philippines), Middle East (UAE, Saudi Arabia), and North America. Documentation includes CE declarations, test certificates, and as‑built drawings as needed.
CQ Scaffolding supplies ringlock scaffolding systems trusted by contractors, rental companies, and distributors worldwide. Whether you need a standard set of components, a fully engineered custom design, or ongoing OEM supply, we are ready to support your project.
Request a quote today – include your component list, quantities, lead time requirements, and any custom specifications. Our team will respond within 24 hours with technical datasheets and pricing.
