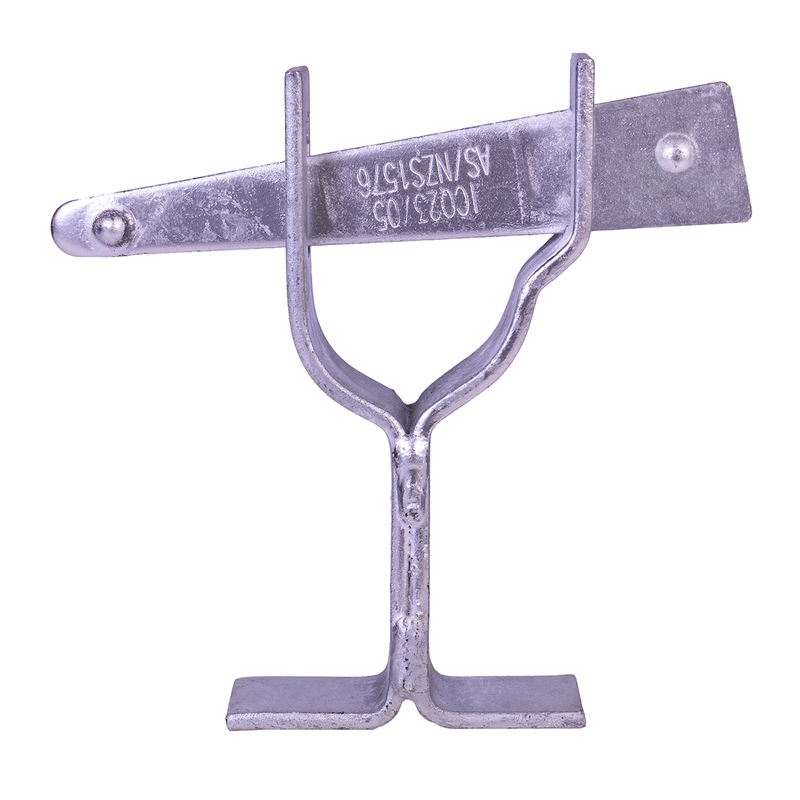

The Kwikstage Toe Board Bracket is a versatile scaffolding component engineered to securely attach toe boards to scaffolding ledgers and uprights, enhancing edge safety on work platforms. Constructed from high-quality mild steel with a hot-dip galvanized finish, this bracket offers robust durability and resistance to environmental factors, making it suitable for diverse construction environments. The design features a single-part clamping mechanism with pre-punched alignment holes, enabling straightforward installation without specialized tools. Its compact profile minimizes interference with platform access while providing a stable anchor for toe boards, ensuring compliance with global fall protection standards.
Universal Fit Design: Compatible with 48.3mm OD scaffolding tubes and toe boards ranging from 150mm to 300mm heights, accommodating standard industry dimensions.
Quick Installation: The lever-operated clamp achieves 90° locking in seconds, reducing setup time by 25% compared to bolted alternatives, with a torque-resistant design that maintains grip under dynamic loads.
Corrosion Resilience: The galvanized coating provides a 75μm zinc layer, meeting BS EN ISO 1461 requirements for 10+ years of outdoor use in non-coastal regions.
Load Distribution: Engineered to withstand 150kg/m linear load, with a reinforced weld joint that eliminates stress concentrations at contact points.
Ideal for projects requiring reliable toe board integration, this bracket is used in:
1. Commercial tower construction for perimeter platform edge protection
2. Industrial plant maintenance, where frequent platform reconfiguration is needed
3. Residential roofing projects, ensuring debris containment and worker safety
4. Temporary event scaffolding, where quick assembly and safety are paramount.
Q: Can this bracket be used with wooden toe boards?
A: Yes, as long as the board thickness (25-50mm) matches the clamp opening. Always verify load ratings for non-standard materials.
Q: What is the temperature tolerance for the galvanized finish?
A: Operational in -30°C to +60°C, with no compromise in mechanical properties within this range.
Q: How many brackets are required for a 3m toe board?
A: Minimum of 3 brackets (spaced 1.5m apart). For heavy-duty use, add an extra bracket at the center.
Q: Does it work with non-Kwikstage scaffolding systems?
A: Designed for Kwikstage, but compatible with any system using 48.3mm tubes. Check tube wall thickness (3.2mm standard) for proper fit.
