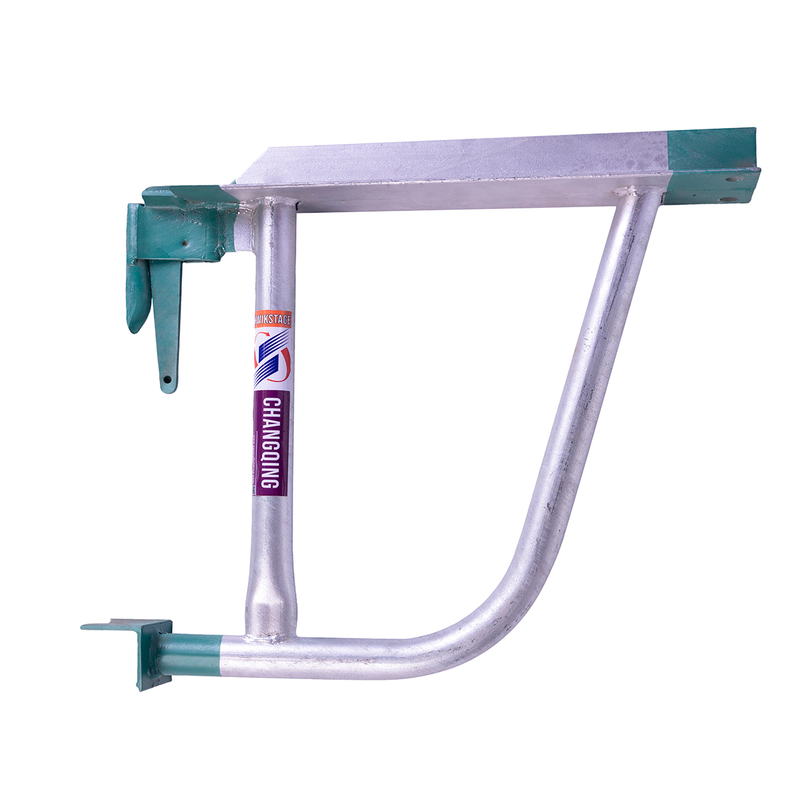

Kwikstage Galvanized Two Board Hop Up Bracket with Painted Ends

The Two Board Hop-Up Bracket is designed to extend your working platform by supporting two scaffold boards inside the scaffold bay. This unit features a robust hot-dip galvanized finish for corrosion resistance, with green painted ends for enhanced visibility and added protection at critical wear points.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button


Overview


The Kwikstage Galvanized Two Board Hop Up Bracket with Painted Ends is a specialized component designed to create elevated working platforms by supporting two overlapping scaffold boards. Constructed from hot-dip galvanized steel with painted end caps (RAL 7035 grey), this bracket combines corrosion resistance with visual consistency, ideal for projects where aesthetics matter. The dual-slot design accommodates two 225mm-wide boards, while the angled brackets provide 300mm platform extension from the main frame.


Features


Dual Board Support: Holds two 38x225mm scaffold boards securely, with anti-slip ridges preventing lateral movement underfoot.

Mixed Finish Design: Galvanized body (85μm coating) for durability, paired with powder-coated ends for UV resistance and color-matching to architectural schemes.

Quick Board Installation: Spring-loaded retainers lock boards into place in seconds, reducing setup time compared to traditional tiedown methods.

Load Rating: Supports 300kg uniformly distributed load, meeting EN 12810-1 standards for temporary working platforms.


Application


Perfect for projects requiring extended platforms with aesthetic considerations, this bracket is used in:

1. Commercial building facade renovations, especially on glass-fronted structures

2. Heritage site restorations, where minimal visual impact is essential

3. Retail store fit-outs, combining safety with clean design for customer-facing areas

4. Stadium maintenance, providing secure access to elevated seating tiers.


FAQ


Q: Can the painted ends be recoated on-site?

A: Yes, using a compatible epoxy paint. Ensure surfaces are clean and dry before repainting.

Q: What is the maximum board overhang allowed?

A: 300mm from the bracket edge, as per design specifications. Exceeding this voids the load warranty.

Q: Is the galvanized section compatible with marine environments?

A: Yes, the hot-dip finish is suitable for coastal use, though annual inspections for chloride buildup are recommended.

Q: Can it be used with composite scaffold boards?

A: Yes, provided boards meet EN 12811-1 standards and have compatible thickness (38-50mm).


GC6A8024181
